Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: IWELL
  • Model Number: CT
  • Phase: Single Phase
  • Protection: Short Circuit
  • Weight: 5.7KG-29KG
  • Output Voltage: 220Vac(1±1%), 220Vac ±3%
  • Type: On-line
  • Application: Security / Monitoring / Alarm
  • Product name: 3KVA/2400W Sine wave online ups
  • capacity: 1KVA/800W,2KVA/1600W,3KVA/2400W
  • Input Voltage: 115-300Vac
  • Input Frequency: 50Hz±5%
  • Output Frequency: 50Hz±0.2%
  • Output Current: 4.55A
  • Input CUrrent: 6A(max)
  • Battery: Sealed lead acid maintenance-free battery
  • Size: 350*144*236

Packaging & Delivery

Packaging Details Poly bags+carton/polywood,as customer's request..
Delivery Time Shipped in 20 days after payment

Product Description



3KVA 2400W pure sine wave online UPS



 Online UPS Function & Characteristic;

  1. AVR,
  2. DSP technology,
  3. True online UPS,
  4. LCD status display,
  5. Overload and short circuit protection.



 Online UPS Specification:

 CT SERIES ONLINE HIGH FREQUENCY UPS (1-3KVA)
ModelCT1KCT1KSCT2KCT2KSCT3KCT3KS
Capacity1KVA/800W2KVA/1600W3KVA/2400W
InputVoltage115- 300Vac
CUrrent6A(max)12A(max)16A(max)
Frequency50Hz±5%
COSΦAccording EN60555-2(≥0.95)
OutputVoltage220Vac ±3%
Current4.55A9.1A13.6A
Frequency50Hz±0.2% (battery mode)
COSΦ0.8(lag)
WaveformSine wave
WaveForm distortionLinear load<3%
Non linear load<6%Non linear load<5%
Overload protection>130%→200ms   >150%→10ms
Transfer time0ms
BatterySealed lead acid maintenance-free battery
External battery voltage12V7AH*3PCS36Vdc12V7AH*6PCS72Vdc12V7AH*8PCS96Vdc
AmbientTemperature0 - 40oC
Humidity0 -95%
Communication9Pin D type connector (RS232)
Size (WxDxH) mm350*144*236425*190*336425*190*337
Weight(kg)125.722.21026.310

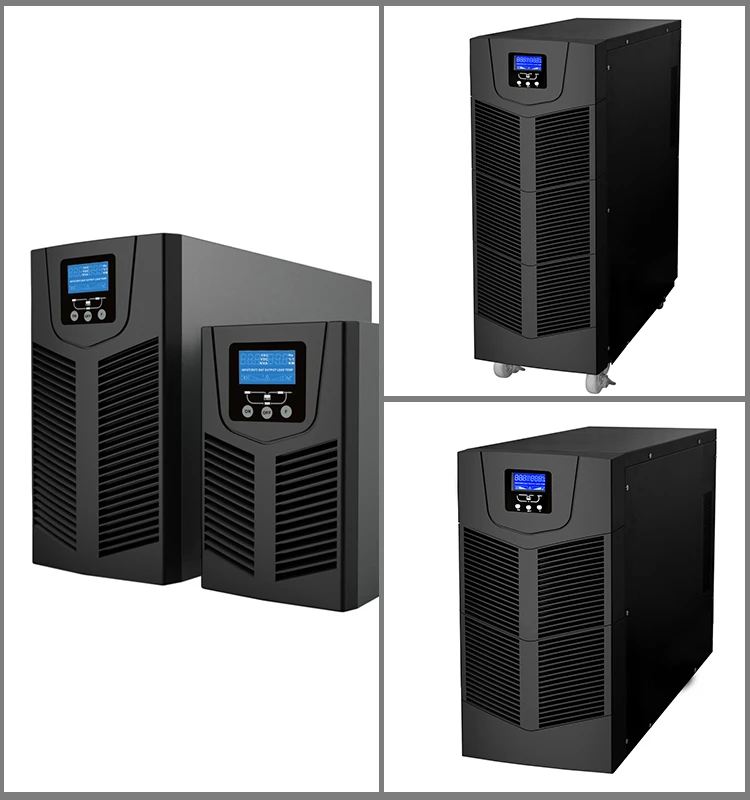

 Online UPS Photos



Packaging & Shipping
  1. Payment T/T,L/C, western union and money gram,
  2. T/T 30% deposit, balance in full before shipment,
  3. Packing Color box+plastic bags+carton / as customer request,
  4. Warranty 1 year.







Our Services

1.We are Alibaba Assessed 5 years Gold Supplier;

2.We are a factory manufacturing UPS power,inverter and battery. best production capability ,best quality control, Best Service;

3.Inspected by the Inspection Institution of  China Quality Certification Centre;

4.100% QC inspection Before Shippment;

5. CE/ISO listed,competitve price.

FAQ

Q 1. If you offer the installation help?

A. coz oversea far away distance, the installation fee is expensive. so we always offer the installation design diagram, the clients set by themselves according to the drawing. And we will offer the help timely whenever you needed.



Q 2. if this item has isolated transformer ?

A. onlinhigh frequency ups without isolated transformer.

online low frequency ups built-in isolated tranformer.



Q 3. How to maintenance when ups didn't work?

A. please strictly do accordance with the user manual , and do not excessive discharge . usually our UPS with lower maintenance. but you can contact us when any troubles happen, our engineer will give you advice asap.



Q 4.Would you accept to use our logo ?

A.it absolute no problem to do OEM ( print your logo on UPS).
